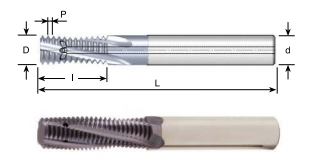

MTZ 08068 C16 16W MT7

$ 226.00

#Flutes:3, Cut Dia:0.268"/6.8mm, Cutter Len:0.66"/16.7mm, EX/IN-RH/LH, Grade:MT7, Matl:Carbide, Overall Len:2.5"/64mm, Pitch:16.00 TPI, Shank Dia:8.0mm, Thread Form:Whitworth-55°, Thread Standard:(3/8)

Collections: Thread Mills

Type: Thread Mills
